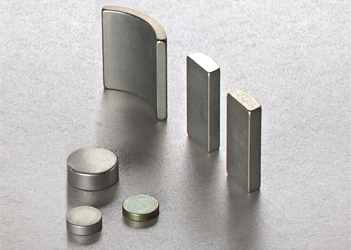

Sintering NdFeB Magnet

Rare earth Neodymium magnets (NdFeB) have been available for industrial application since 1984,which have extremely high magnetic energy and therefore are used in applications which require high powered magnets, as well as applications where size and weight reduction are of interest or need to be considered. These qualities have made NdFeb magnet preferable over
the commonly Ferrite magnet
We provide series of NdFeB magnets for your best choice

Data Sheet of Sintering NdFeB Magnet

Series	Grade	mT(KGs) Br	KA/m(Koe) bHc	KA/m(KOe) ihc	(BHmax) KJ/m³(MGOe)	g/cm³ D	Br.Temp. Coeffient%/	Tc (L/D≥0.7)	Tw
N	N35	1180-1250	≥860	≥955	263-295	7.4-7.6	-0.12(60)	310	≤80
		(11.8-12.5)	(≥10.8)	(≥12)	(33-37)
	N38	1230-1290	≥899	≥955	287-318	7.5-7.7	-0.12(60)	310	≤80
		(12.3-12.9)	(≥11.3)	(≥12)	(36-40)
	N40	1270-1330	≥923	≥955	302-334	7.5-7.7	-0.12(60)	310	≤80
		(12.7-13.3)	(≥11.6)	(≥12)	(38-42)
	N45	1330-1390	≥876	≥955	342-374	7.5-7.7	-0.12(60)	310	≤80
		(13.3-13.9)	(≥11.0)	(≥12)	(43-47)
	N48	1370-1420	≥836	≥955	366-390	7.5-7.7	-0.12(60)	310	≤80
		(13.7-14.2)	(≥10.5)	(≥12)	(46-49)
	N50	1400-1450	≥836	≥876	374-406	7.5-7.7	-0.12(60)	310	≤80
		(14.0-14.5)	(≥10.5)	(≥11)	(47-51)
	N52	1430-1480	≥836	≥876	390-422	7.5-7.7	-0.12(60)	310	≤80
		(14.3-14.8)	(≥10.5)	(≥11)	(49-53)
M	40M	1270-1330	≥923	≥1114	302-334	7.5-7.7	-0.12(80)	320	≤100
		(12.7-13.3)	(≥11.6)	(≥14)	(38-42)
	45M	1330-1390	≥994	≥1114	342-374	7.5-7.7	-0.12(80)	340	≤100
		(13.3-13.9)	(≥12.5)	(≥14)	(43-47)
	48M	1370-1420	≥1019	≥1114	366-390	7.5-7.7	-0.12(80)	340	≤100
		(13.7-14.2)	(≥12.8)	(≥14)	(46-49)
	50M	1400-1450	≥1042	≥1114	374-406	7.5-7.7	-0.12(80)	340	≤100
		(14.0-14.5)	(≥13.1)	(≥14)	(47-51)
	52M	1430-1470	≥1058	≥1114	398-430	7.5-7.7	-0.12(80)	340	≤100
		(14.3-14.7)	≥13.3	(≥14)	(50-54)
H	38H	1230-1290	≥899	≥1353	287-318	7.5-7.7	-0.1(100)	340	≤120
		(12.3-12.9)	(≥11.3)	(≥17)	(36-40)
	40H	1270-1330	≥923	≥1353	302-334	7.5-7.7	-0.1(100)	340	≤120
		(12.7-13.3)	(≥11.6)	(≥17)	(38-42)
	42H	1290-1350	≥955	≥1353	318-350	7.5-7.7	-0.1(100)	340	≤120
		(12.9-13.5)	(≥12.0)	(≥17)	(40-44)
	44H	1310-1370	≥963	≥1353	326-358	7.5-7.7	-0.1(100)	340	≤120
		(13.1-13.7)	(≥12.1)	(≥17)	(41-45)
	46H	1330-1380	≥980	≥1353	342-374	7.5-7.7	-0.1(100)	340	≤120
		(13.3-13.8)	(≥12.3)	(≥17)	(43-47)
	48H	1370-1420	≥1019	≥1353	358-390	7.5-7.7	-0.1(100)	340	≤120
		(13.7-14.2)	(≥12.8)	(≥17)	(45-49)
SH	30SH	1080-1160	≥812	≥1592	223-255	7.5-7.6	-0.1(100)	340	≤150
		(10.8-11.6)	(≥10.2)	(≥20)	(28-32)
	33SH	1140-1210	≥844	≥1592	247-279	7.5-7.7	-0.1(100)	340	≤150
		(11.4-12.1)	(≥10.6)	(≥20)	(31-35)
	35SH	1170-1240	≥876	≥1592	263-295	7.5-7.7	-0.1(100)	340	≤150
		(11.7-12.4)	(≥11.0)	(≥20)	(33-37)
	38SH	1220-1290	≥907	≥1592	287-318	7.5-7.7	-0.1(100)	340	≤150
		(12.2-12.9)	(≥11.4)	(≥20)	(36-40)
	40SH	1260-1320	≥939	≥1592	302-334	7.5-7.7	-0.1(100)	340	≤150
		(12.6-13.2)	(≥11.8)	(≥20)	(38-42)
	42SH	1290-13.5)	≥955	≥1592	318-350	7.5-7.7	-0.1(100)	340	≤150
		12.9-13.5)	(≥12.0)	(≥20)	(40-44)
	45SH	1320-1380	≥980	≥1592	342-366	7.5-7.7	-0.1(100)	340	≤150
		(13.2-13.8)	(≥12.3)	(≥20)	(43-46)
	48SH	1370-1400	≥1019	≥1592	366-390	7.5-7.7	-0.1(100)	340	≤150
		(13.7-14.0)	(≥12.8)	(≥20)	(46-49)
UH	30UH	1080-1160	≥812	≥1990	223-255	7.5-7.7	-0.1(100)	350	≤180
		(10.8-11.6)	(≥10.2)	(≥25)	(28-32)
	33UH	1140-1210	≥852	≥1990	247-279	7.5-7.7	-0.1(100)	350	≤180
		(11.4-12.1)	(≥10.7)	(≥25)	(31-35)
	35UH	1170-1240	≥876	≥1990	263-295	7.5-7.7	-0.1(100)	350	≤180
		(11.7-12.4)	(≥11.0)	(≥25)	(33-37)
	38UH	1220-1290	≥915	≥1990	287-318	7.5-7.7	-0.1(100)	350	≤180
		(12.2-12.9)	(≥11.5)	(≥25)	(36-40)
	40UH	1260-1320	≥923	≥1990	302-334	7.5-7.7	-0.1(100)	350	≤180
		(12.6-13.2)	(≥11.6)	(≥25)	(38-42)
	42UH	1290-1330	≥955	≥1990	318-350	7.5-7.7	-0.1(100)	350	≤180
		(12.9-13.3)	≥12.0	(≥25)	(40-44)
EH	30EH	1080-1160	≥812	≥2388	223-255	7.5-7.7	-0.1(100)	350	≤200
		(10.8-11.6)	(≥10.2)	(≥30)	(28-32)
	33EH	1140-1210	≥852	≥2388	247-279	7.5-7.7	-0.1(100)	350	≤200
		(11.4-12.1)	(≥10.7)	(≥30)	(31-35)
	35EH	1170-1240	≥876	≥2388	263-295	7.5-7.7	-0.1(100)	350	≤200
		(11.7-12.4)	(≥11.0)	(≥30)	(33-37)
	38EH	1230-1270	≥915	≥2388	287-318	7.5-7.7	-0.1(100)	350	≤200
		(12.3-12.7)	(≥11.5)	(≥30)	(36-40)
AH	30AH	1080-1160	≥804	≥2786	223-255	7.6-7.7	-0.09(100)	350	≤220
		(10.8-11.6)	(≥10.1)	(≥35)	(28-32)
	33AH	1140-1210	≥852	≥2786	247-279	7.6-7.7	-0.09(100)	350	≤220
		(11.4-12.1)	(≥10.7)	(≥35)	(31-35)
	35AH	1170-1240	≥868	≥2786	263-295	7.6-7.7	-0.09(100)	350	≤220
		(11.7-12.4)	(≥10.9)	(≥35)	(33-37)

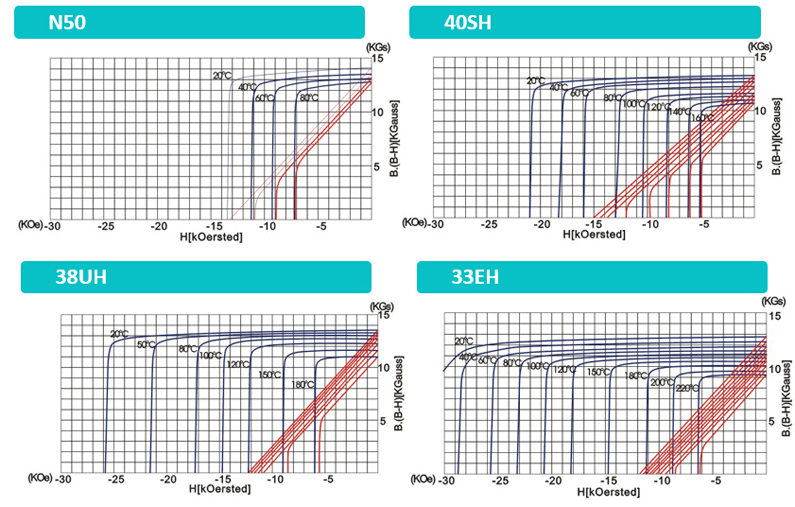

BH Loop(Demagnetization Curve)
