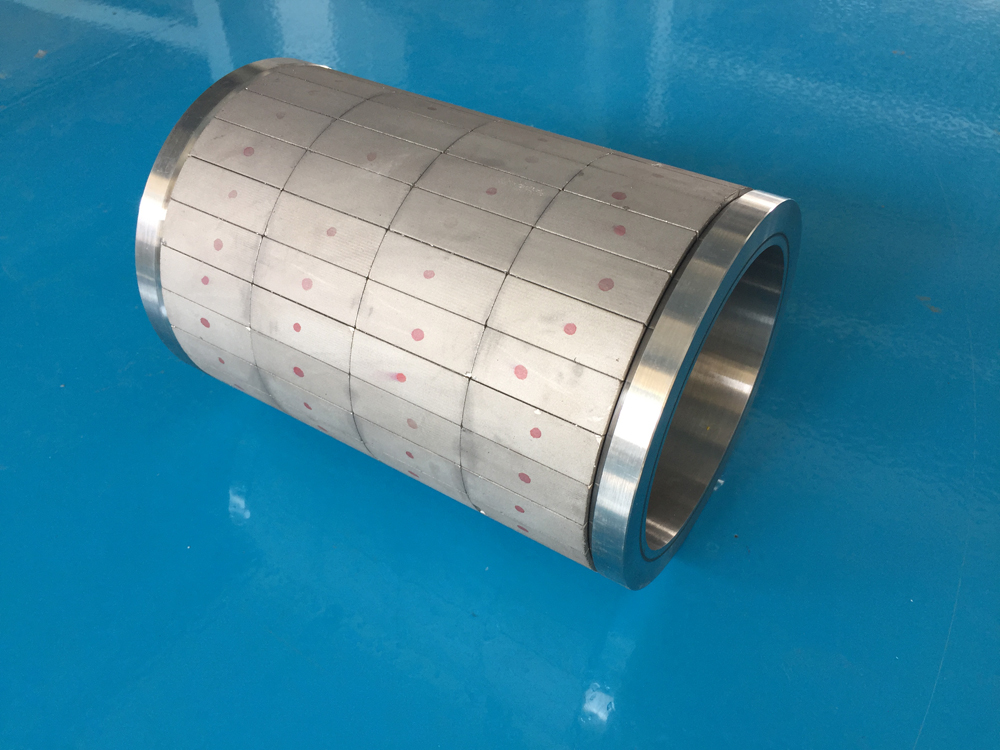

Magnetic Coupling

• Magnetic Coupling works in the magnetic drive pumps, which transport volatile, flammable, explosive and toxic liquid. Different with traditional Mechanical Coupling, the Magnetic Coupling transfer the power(torque) with zero contact. The magnetic Coupling is widely used for chemical material processing , food industry , pharmaceutical industry and so on
• Newland can provide customized design and manufacturing, from 0.1Nm to 1000Nm with enduring all various of environmental factors like acid, salty and high-temperature.

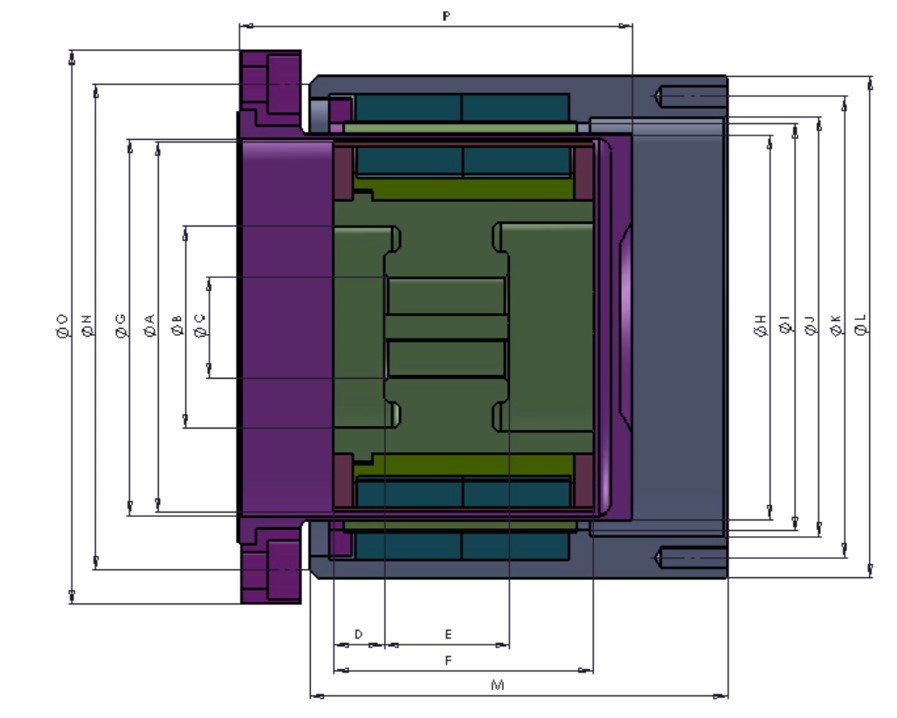

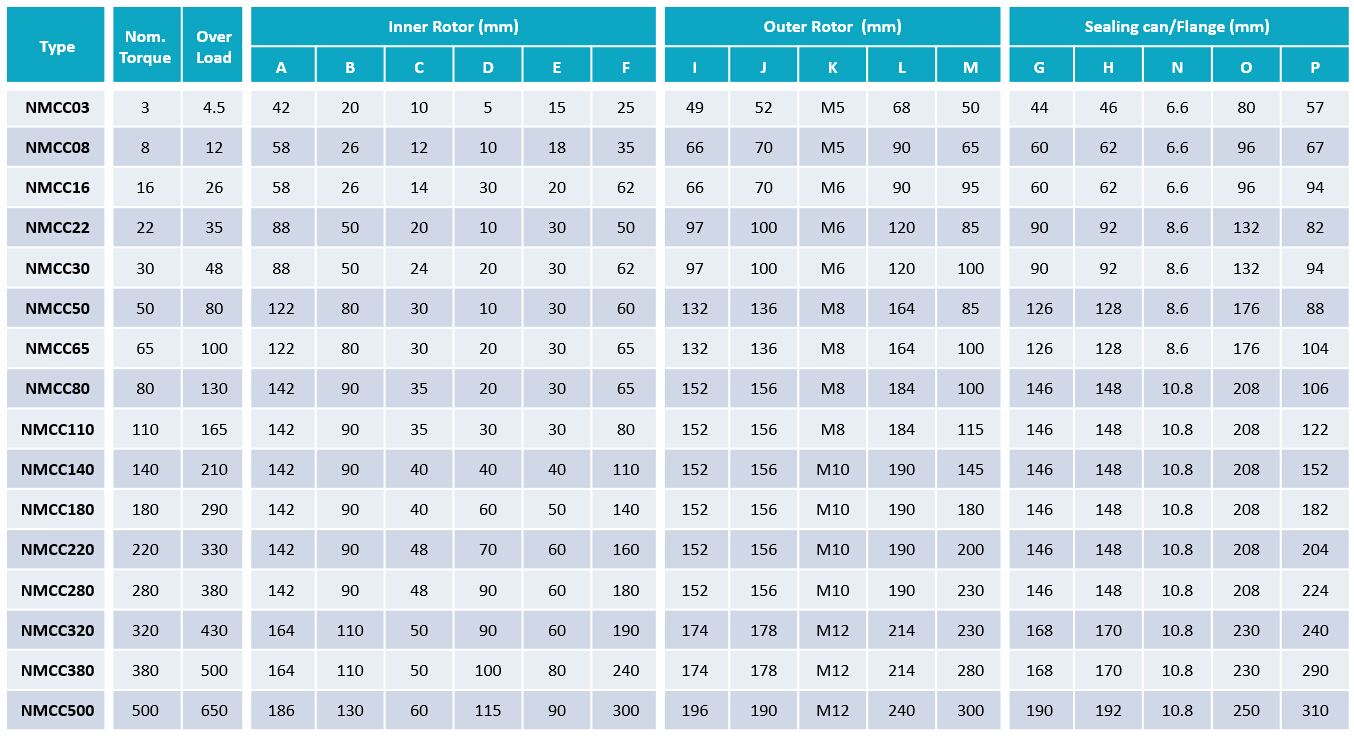

          Data Sheet of Magnetic Coupling

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

¡@

       Type of Outer Rotor(OR) and Inner Rotor(IR)

OR	1	2	3	4
	Stardard	With Envelop	With fulling glue	All-sealed by Welding
IR	5	6	7	8
	Stardard	Sealed by Envelop	Fixed by side cover	Plastic Sheel

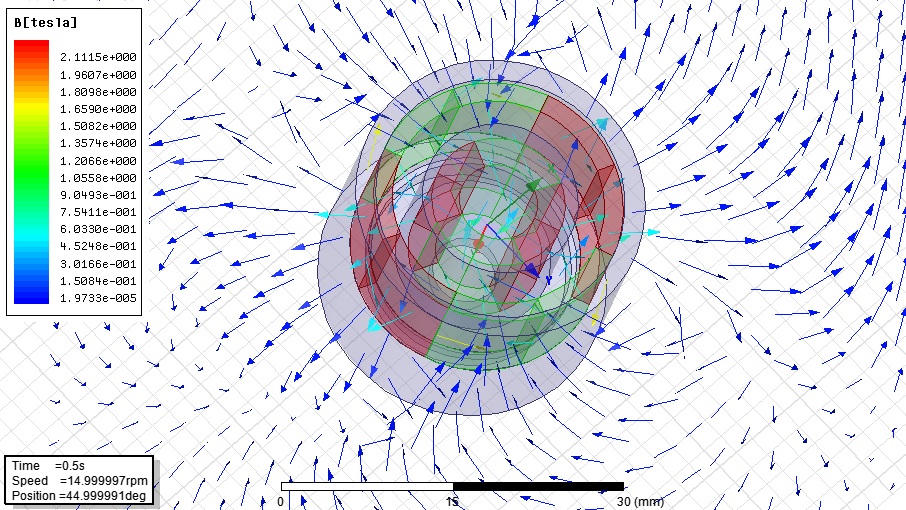

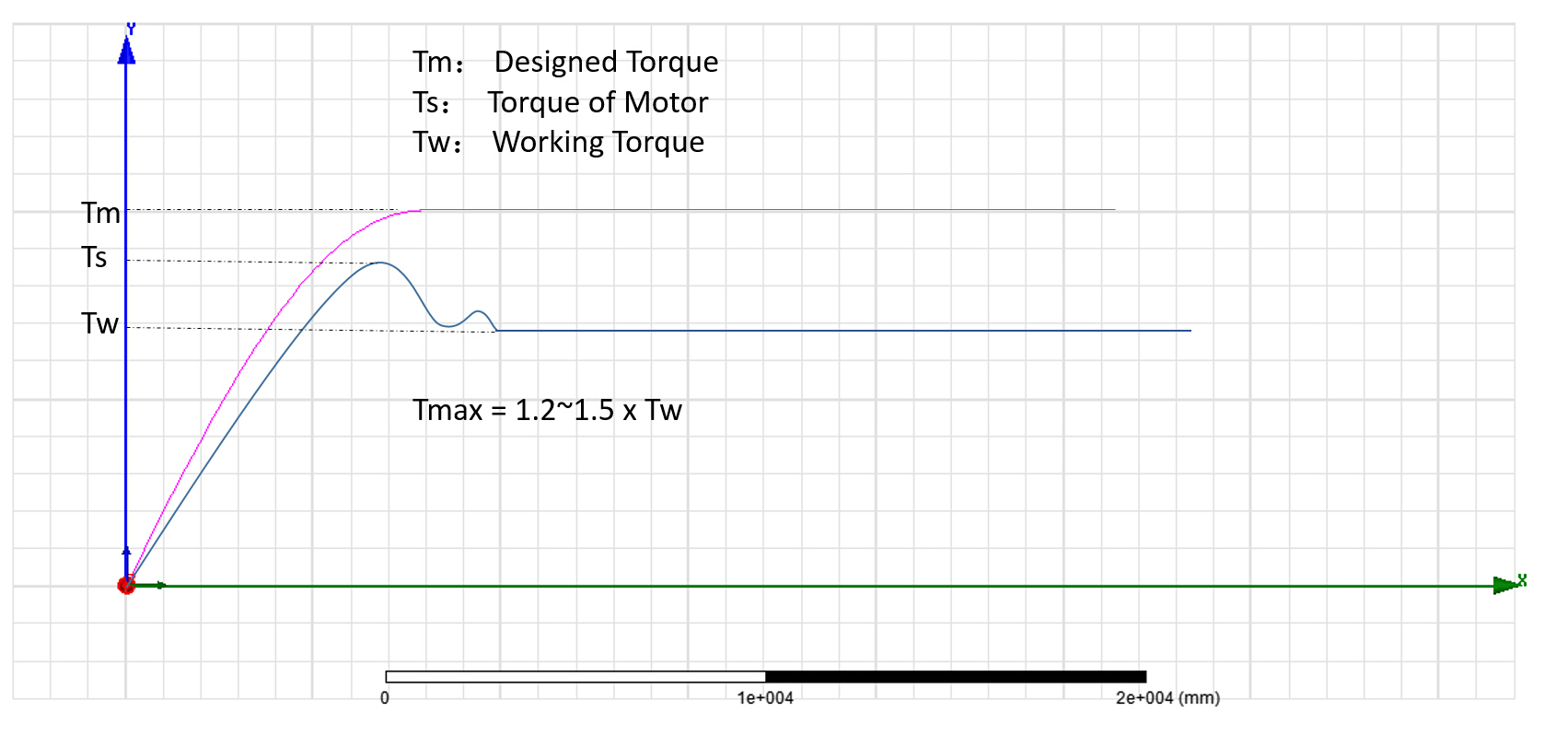

    Design to apply to different applications

¡@

¡@
