SmCo Magnet

It's made from rare earth material: Samarium and Cobalt, produced by a series processing including burdening, melting, milling, pressing and sintering.
There are mainly 2 kinds of SmCo magnet used in the industries, which is Sm2Co17 and
SmCo5. They have different balance between Br and Hcj, applied to various application.
The most preferable advantage of SmCo Magnet is its excellent capability of high-temperature enduring. Nornally ,the SmCo Magnet can stand in minimal 250

Data Sheet of SmCo Magnet

Series	Grade	T(KGs) Br	KA/m(Koe) HcB	KA/m(KOe) HcJ	(BHmax) KJ/m³(MGOe)	g/cm³ D	Br.Temp. Coeffient%/	Tc (L/D≥0.7)	Tw
SmCo 1:5	YX16	0.75-0.88	597∮40	≥1989	127∮16	8.0-8.2	-0.05	700-750	≤250
		7.5-8.8	7.5∮0.5	≥25	16∮2
	YX18	0.8-0.93	637∮40	≥1432	143∮16	8.0-8.2	-0.05	700-750	≤250
		8.0-9.3	8∮0.5	≥18	18∮2
	YX20	0.85-0.98	637∮40	≥1273	159∮16	8.0-8.2	-0.05	700-750	≤250
		8.5-9.8	8∮0.5	≥16	20∮2
	YXT18	0.90-1.03	637∮40	≥1194	143∮16	8.0-8.2	-0.05	800	≤250
		9.0-10.3	8∮0.5	≥15	18∮2
	YX22A	0.9-1.03	653∮40	≥1989	175∮16	8.0-8.2	-0.05	800	≤250
		9.0-10.3	8.2∮0.5	≥25	22∮2
	YX22B	0.9-1.03	653∮40	≥1432	175∮16	8.3-8.5	-0.05	800	≤250
		9.0-10.3	8.2∮0.5	≥18	22∮2
SmCo 2:17	YXG28L	1.02-1.08	413-716	438-796	207-220	8.3-8.5	-0.03	800	≤250
		10.2-10.8	5.2-9.0	5.5-10	26-28
	YXG30L	1.08-1.15	413-716	438-796	220-240	8.3-8.5	-0.03	800	≤250
		10.8-11.5	5.2-9.0	5.5-10	28-30
	YXG26M	1.02-1.05	750-780	955-1273	191-207	8.3-8.5	-0.03	800	≤300
		10.2-10.5	9.4-9.8	42720	24-26
	YXG28M	1.03-1.08	756-796	955-1273	207-220	8.3-8.5	-0.03	800	≤300
		10.3-10.8	9.5-10.0	42720	26-28
	YXG30M	1.08-1.10	788-835	955-1273	220-240	8.3-8.5	-0.03	800	≤300
		10.8-11.0	9.9-10.5	42720	28-30
	YXG24	0.95-1.02	700-750	≥1433	175-191	8.3-8.5	-0.03	800	≤300
		9.5-10.2	8.7-9.4	≥18	22-24
	YXG26	1.02-1.05	750-780	≥1433	191-207	8.3-8.5	-0.03	800	≤300
		10.2-10.5	9.4-9.8	≥18	24-26
	YXG28	1.03-1.08	756-796	≥1433	207-220	8.3-8.5	-0.03	800	≤300
		10.3-10.8	9.5-10.0	≥18	26-28
	YXG30	1.08-1.10	788-836	≥1433	220-240	8.3-8.5	-0.03	800	≤300
		10.8-11.0	9.9-10.5	≥18	28-30
	YXG24H	0.95-1.02	700-750	≥1900	175-191	8.3-8.5	-0.03	800	≤350
		9.5-10.2	8.7-9.4	≥25	22-24
	YXG26H	1.02-1.05	750-780	≥1900	191-207	8.3-8.5	-0.03	800	≤350
		10.2-10.5	9.4-9.8	≥25	24-26
	YXG28H	1.03-1.08	756-796	≥1900	207-220	8.3-8.5	-0.03	800	≤350
		10.3-10.8	9.5-10.0	≥25	26-28
	YXG30H	1.08-1.10	788-835	≥1900	220-240	8.3-8.5	-0.03	800	≤350
		10.8-11.0	9.9-10.5	≥25	28-30

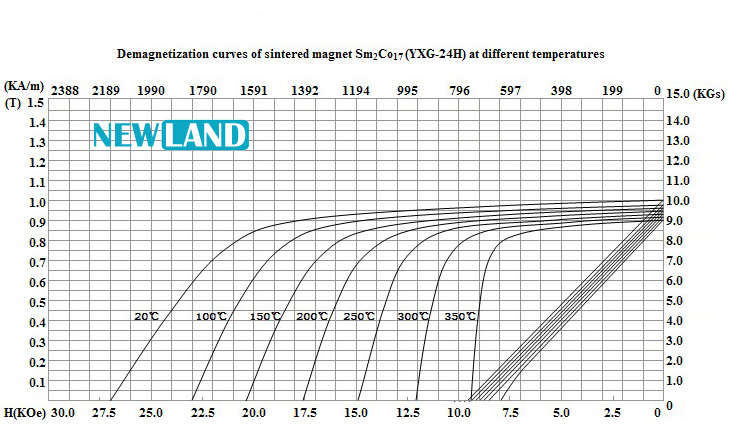

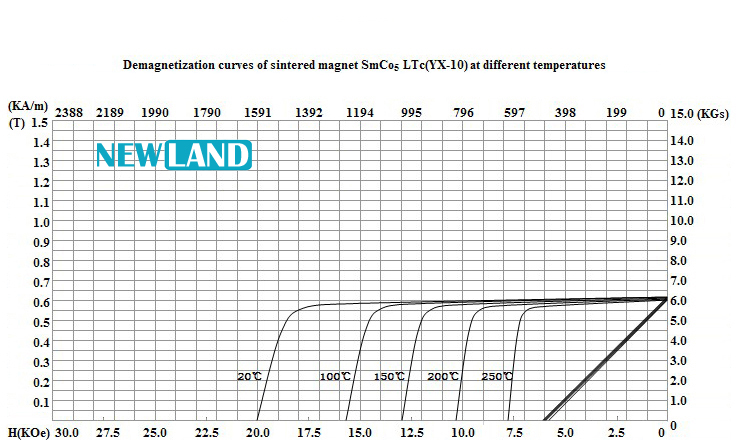

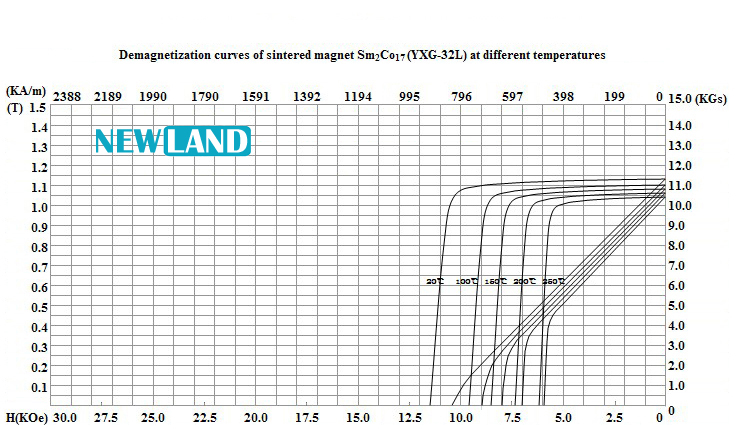

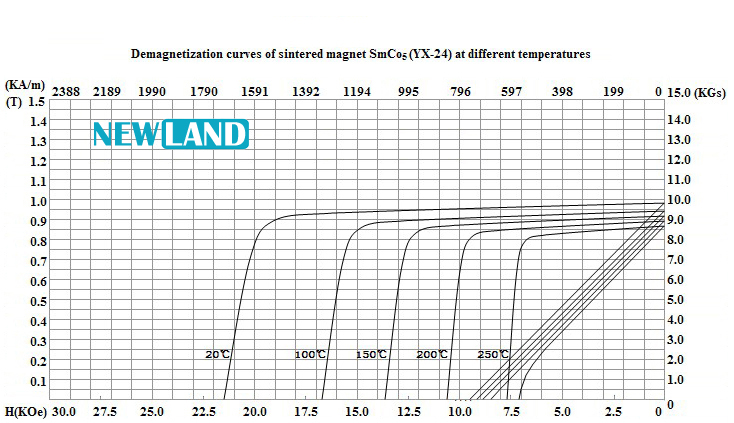

BH Loop(Demagnetization Curve)
