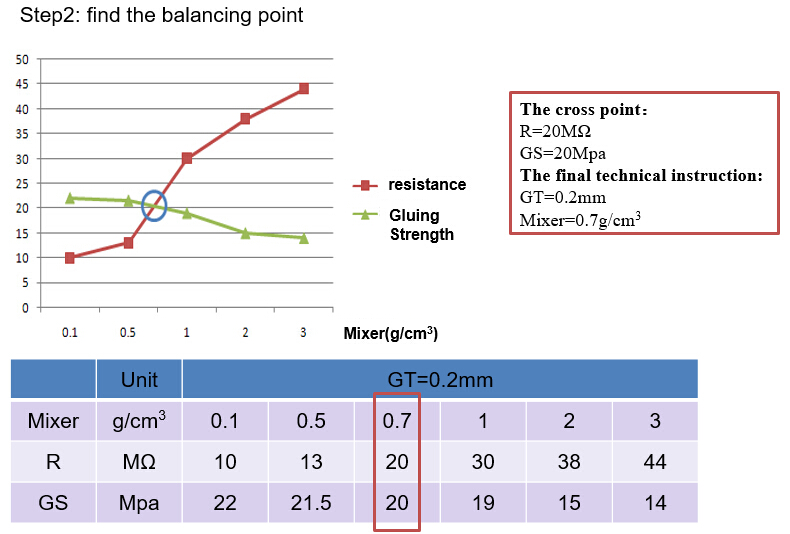

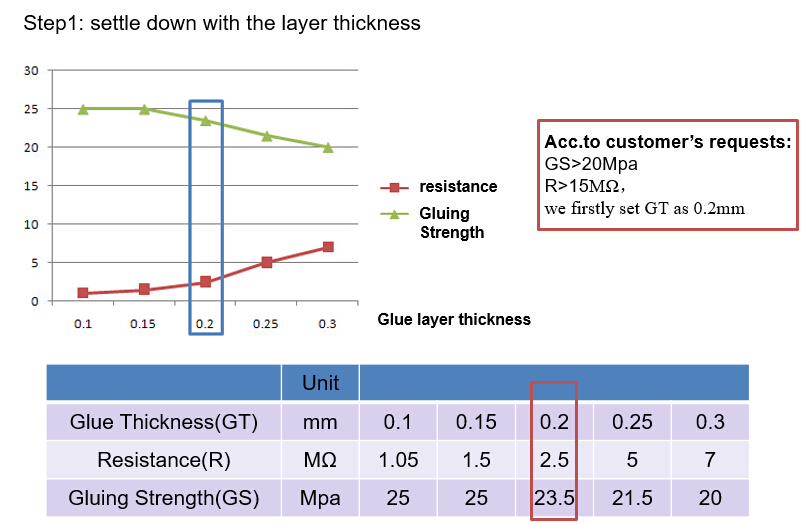

    [Solution]      Balancing between gluing effect and eddy current

    [Example]      Magnet for wind turbine and driving motor

¡@

¡@

Magnet for Wind Turbine and Driving Moter

Project 1¡Gmagnet for wind turbine

   1¡^+20ºC                                    2¡^+60ºC

         Br = 1.35 T                                 Br = 1.3 T

         HcB = - 1040 kA/m                  HcB = - 950 kA/m

         HcJ > 1350 kA/m                      HcJ > 950 kA/m

                                                               HK > 920 kA/m

¡@

2. Tolerance of Br and HcB within +/-1%

¡@

¡@

4.    Surface apperance¡G

¡@

¡@

6.    Tracibility on each magnet¡]with 2D bar code¡^

¡@

Project 2¡Gmagnet for marine driving motor

     1¡^+20ºC

           Br≥ 1.35T

           HcJ≥ 1273kA/m

           HcB≥ 1010kA/m

     2¡^+80ºC

           Br≥ 1.30T

           HcJ≥ 800kA/m

2.    Tolerance of Br and HcB within 3%

3.    Coating material and thickness¡GNiCuNi+Epoxy¡AAcc.to ISO12944,C3 High¡]or C4 low¡^

¡@
